Initial Diagnostic Audit - Unit F2: Angles and Circles
Section F2.1 - Compass Bearings

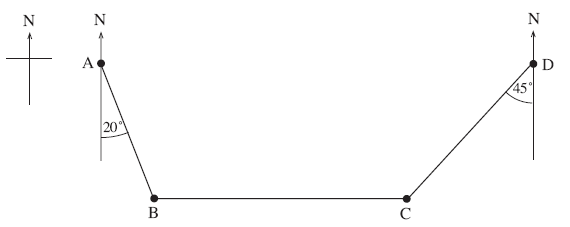

1. The diagram below shows the course of a ship's route from A to D.

Point C is directly east of point B.
What is the bearing of

(a)  B from A    °

(b)  C from B    °

(c)  D from C    °

(d)  A from B    °

2. A man has walked 500 m on a bearing of 110°.
Estimate how far east he now is from his starting point.    Distance = m
Section F2.2 - Angles and Circles
3. Calculate the size of the angles α, β and γ in the diagram, where O is the centre of the circle.

(a)  Angle α = °

(b)  Angle β = °

(c)  Angle γ = °

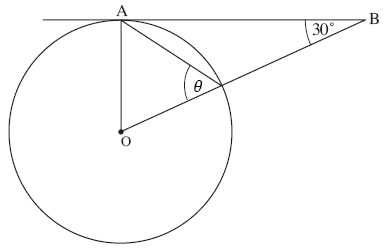

4. Calculate the angle θ in the diagram below where AB is a tangent and O is the centre of the circle.

Angle θ = °

5. Calculate the angle θ in the diagram below where O is the centre of the circle.

Angle θ = °

Marking your audit and producing your report

Once you are happy you have completed the audit, click the button below to mark your audit.
You will not be able to mark the audit again once you have clicked this button.
Mark your answers.

Now you can click the button below to produce your report. This button can be used more than once.
Produce your report.

< Back to Unit Menu
Produced by Russell Geach for CIMT - March 2014
