Solids
Using Isometric Paper

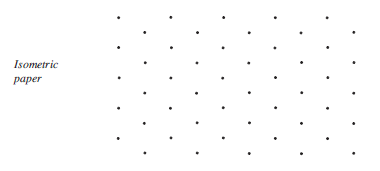

The spots on isometric paper are arranged at the corners of equilateral triangles.
Worked Examples
1
Draw a cube with sides of 2 cm on isometric paper.
Show me
The diagrams show the three stages needed to draw the cube.
2

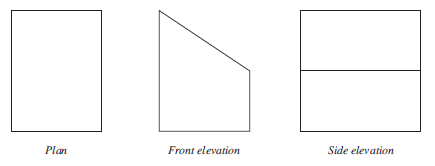

Draw the front elevation, side elevation and plan of this shape.
Show me
From the front elevation the front can be drawn.
Then using the side elevation the lower part of the side can be drawn.
Finally the drawing can be completed.
