Initial Diagnostic Audit - Unit J2: Further Transformations
Section J2.1 - Translations

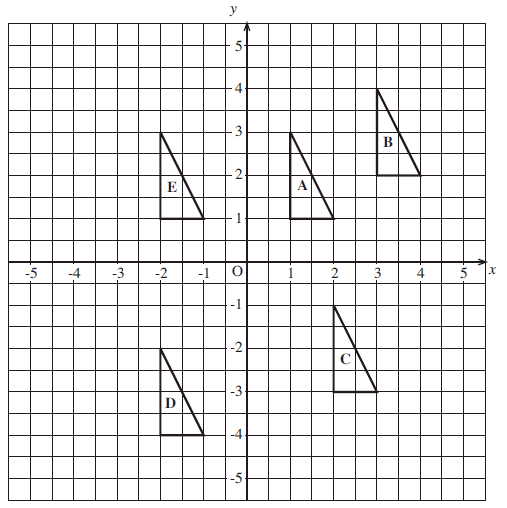

Describe, in vector form, the translation that are shown in each question.

1.
A → B =
2.
A → E =
3.
B → C =
4.
A → D =
5.
B → A =
Section J2.2 - Combined Transformations
6.

(a)  Rotate the trapezium ABCD through 90° in an anticlockwise direction about the point A to form
the trapezium AB'C'D'.
What are the new coordinates of B'?  B' = (,)

(b)  Reflect ABCD in the line through AD to form the trapezium AB''C''D.
What are the new coordinates of C''?  C'' = (,)

(c)  What is the single transformation that will transform AB'C'D' onto AB''C''D?

7. Reflect the shape A, below, in the line x = -1 to obtain shape B.
Reflect shape B in the line y = -1 to obtain shape C.

Find the angle and centre of rotation that will transform shape A to shape C.
Angle of rotation = °
Centre of rotation = (,)

Marking your audit and producing your report

Once you are happy you have completed the audit, click the button below to mark your audit.
You will not be able to mark the audit again once you have clicked this button.
Mark your answers.

Now you can click the button below to produce your report. This button can be used more than once.
Produce your report.
